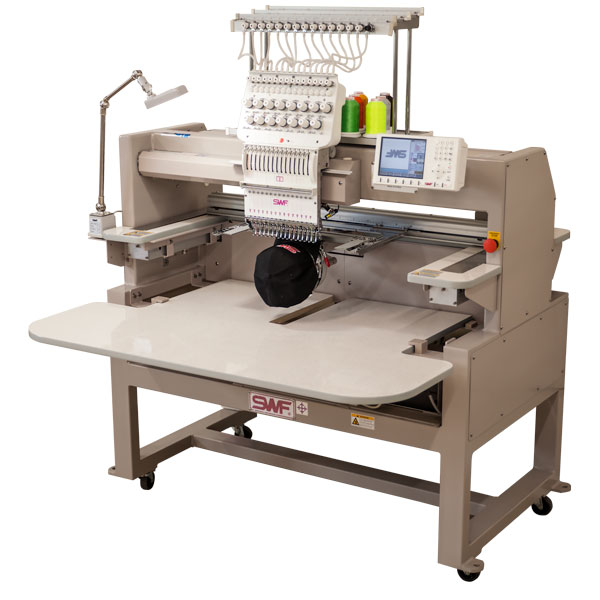

SWF E-U Jumbo Bridge Single Head (Wide Field, Extra Deep)

SWF E-U Jumbo Bridge Single Head (Wide Field, Extra Deep)


The SWF E-U Jumbo Bridge E-U1501 is our second Level of Tubular Bridge Single Head Industrial Embroidery machine that comes complete with built in embroidery stand and uses our multi head designed and quite running SWF sewing head technology.

Incorporating a Jumbo stitching field of up to 520 mm x 1000 mm with built in drop table for that larger product support during the stitching process then this is the right model for you.

The SWF E-U Jumbo Bridge E-U1501 Jumbo is controlled by an intuitive interactive 6.4″ LCD touch screen display and can embroider on both flat, tubular hoops or caps.

The SWF / E – U Jumbo will fit in any industrial work space but will require a little more access upon delivery of the machine.

New SWF E-U Jumbo Bridge Operation Box

  • Colour Screen
  • Support 4 USB Ports
  • Design editing function
  • GUI(Graphical User Interface) based on user experience
  • Multi-tasking : Design modification is enabled during work

This SWF E-U Jumbo Bridge is available in 9, 12 or 15 colour versions but is supplied as standard in to the United Kingdom in this 15-colour version.

This SWF model comes delivered, installed with full training together with up to a  5 Year SWF Factory Warranty not forgetting our 7 Year SWF Stitch Quality Guarantee!

If you are new to embroidery and are in need of a Extra large stitching area that can work on more that just caps and tubular embroidery then having the Jumbo Wide Bridge and the supportive table to allow a Flat working area up to 520mm x 1Mtr  then the EN-U Bridge Series has the best of everything from technology and design to reliability and size.

Combined with our start off  business packages such as WINgs Embroidery Software, SENS-Networking System, Embroidery Framing Systems and Backing and Support Materials, Embroidery Stock Design packages, then we have your new venture covered!

Brochure Download

Download the latest SWF Product Brochure Here

Request An Official Quotation

Please use the form below to request a quotation for this specific machine

[contact-form-7 404 "Not Found"]



Spec Description
Machine Speed Max 1,200 spm (Tubular/Flat)

900 spm (QC Caps)

Machine Size At Delivery (W x L x H) 1,270 mm x 800 mm x 1,580mm
At Site (W x L x H) 1,270 mm x 2,000 mm x 1,580mm
Power / Usage Voltage [100 ~ 240V] [50/60Hz], 0.5 kW
Oil Lubrication System Standard Lubrication System
Machine Controls Box 6.4″ intuitive Color LCD Screen
Machine Memory Capacity Standard: 20,000,000 Stitch up to 99 designs
Media USB
Machine Sewing Field Normal 520 mm x 1,000 mm
Wide Angle Cap System 360 x 75 mm


Feature Description
Expanded Memory Size Up to 99 designs can be saved to the memory and the capacity includes Twenty Million Stitches.
Mirror Image Conversion and Design Direction The design can be turned by 1° between 0° and 359°. Supports mirror image conversion (X-axis conversion).
Enlarging and Reducing Design Embroidery design can be increased/decreased by 1% to X or Y axis within the range from 50% to 200%.
General Repetition Work Same design can be repeated up to 99 times (X, Y axis direction).
Special Repetition Work Allows repeat work up to 63 times for various designs and can modify the angle and the mirror during the repeat work.
Automatic Offset To make frame replacement convenient, frame is automatically moved to the offset position after a completion of work. Offset position can be configured from the “Parameter Setting Mode”
Manual Offset Manual offset function allows users to manually move the frame to a certain position while embroidering. The function allows convenient applique and frame replacement during the embroidery process. Frame can be moved to its original position afterwards with simple key control.
Origin Return Allows frame to return to its start point during embroidery.
Float Stitch Function Needle bar can be moved forward or backward in the units of 1, 100, 1000, 10000 needles and colour cord without actual embroidery.
Frame Backward Allows frame to move to the position where embroidery started from 1 to 10 times when the thread becomes cut or falls off from the frame.
Auto Return to the Embroidery Stop Position After Sudden Power Interruption In case of power outage, frame is automatically returned to the position where embroidery stopped. This function greatly reduces the risk of ruining embroidery from unexpected power outage.
Edit Function of the design Edit Function allows users to delete, modify, and/or insert stitch data and function code such as jump, end, and trimming.
Auto Recognition of Other Company’s Design Code Design formats from other companies saved in USB memory are automatically recognized and can be applied towards embroidery.
Setting Speed and Current Speed are Displayed at RPM on the Screen Allows input/output, deletion of design using USB memory stick
Design Trace Facility with Laser This allows the customer to accurately trace the perimeter of the embroidery Patten with a 5 mm margin, absolute margin or in a box shape.
Embroidery Frame Limits Each machine is equipped with embroidery hoop selection with frame perimeter limits to make the embroiders roll easier when combined with the hoop center feature.


  • Sequin/Zigzag Optional devices available SQ40i and ZD-10 devices
  • Veneer cutting tool built in (for easy badge cutting out)
  • Multi-language support Removable control box with convenient A/S service
