K-Series (2 x 2) 4-head Machine

The SWF Dual Function 4 Head K-UH1504D-45 is one of the most versatile embroidery machines on the market because it has World Patented Dual Function Technology.

Incorporating a standard stitching field of 450mm x 400mm making it the biggest stitching field on a compact design machine available.

SWF’s World Patented Dual Function Technology gives this machine the ability to operate as either a tradition 4 head machine with increase production or as two separate 2 head machines (2×2) giving the user even more flexibility and production!

SWF – Dual in Operation

The SWF Dual Function 4-head is controlled by a 10.4 inch touch LCD display and can embroider two different designs on both flat, tubular hoops and or caps simultaneously and uniquely.

This World Patented SWF Embroidery Machine is also available in a 9 or 12 colour version but is supplied as standard in to the United Kingdom in this 15-colour version.

Coming standard with advanced features such as SWF Automatic Oiling System,  Directly Driven Trimming System, Oversized Body and Beam for strength and vibration free embroidery, Built in Power Failure/Break Down Redundancy (half the machine can still operate), Optional Quick Change Cap Frames and much, much more makes this SWF embroidery machine the most advanced embroidery machine currently available in the world.

The SWF World Patented Dual Function machine with all of these benefits and features can produce up to 25% more productivity than any other embroidery machine in the world stitching at the same speed, Truly Eye Opening., Remember that believing is seeing, Seeing is Believing and we can prove its production figures, Just ask how!

SWF – Dual Function Production Figures

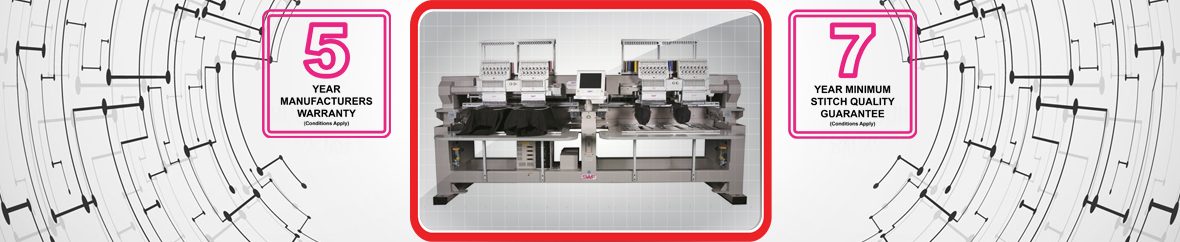

This SWF Embroidery Machines comes delivered and installed with full training and up to a 5 Year Factory Warranty not forgetting our 7 Year SWF Stitch Quality Guarantee!

Brochure Download

Download the latest SWF Product Brochure Here

Request An Official Quotation

Please use the form below to request a quotation for this specific machine


[contact-form-7 404 "Not Found"]



Spec Description
Speed Max 1000 spm (Tubular/Flat)

900 spm (QC Caps)

Machine Size At Delivery (L x W x H) 3,160mm x 986mm x 1,880mm
At Site (L x W x H) 3,160mm x 1,215mm x 1,880mm
Power Consumption 1.1kW
Lubrication System Semi-auto Pump Lubrication System
Operation Box Colour LCD Screen
Memory Capacity Standard: 20,000,000 Stitch up to 99 designs
Media USB
Sewing Field Normal 400 x 450 mm / 15.74 x 17.71 inch
Cap 360 x 75 mm / 14.17 x 2.95 inch


Feature Description
Expanded Memory Size Up to 99 designs can be saved to the memory and the capacity includes Twenty Million Stitches.
Mirror Image Conversion and Design Direction The design can be turned by 1° between 0° and 359°. Supports mirror image conversion (X-axis conversion).
Enlarging and Reducing Design Embroidery design can be increased/decreased by 1% to X or Y axis within the range from 50% to 200%.
General Repetition Work Same design can be repeated up to 99 times (X, Y axis direction).
Special Repetition Work Allows repeat work up to 63 times for various designs and can modify the angle and the mirror during the repeat work.
Automatic Offset To make frame replacement convenient, frame is automatically moved to the offset position after a completion of work. Offset position can be configured from the “Parameter Setting Mode”
Manual Offset Manual offset function allows users to manually move the frame to a certain position while embroidering. The function allows convenient applique and frame replacement during the embroidery process. Frame can be moved to its original position afterwards with simple key control.
Origin Return Allows frame to return to its start point during embroidery.
Float Stitch Function Needle bar can be moved forward or backward in the units of 1, 100, 1000, 10000 needles and colour cord without actual embroidery.
Frame Backward Allows frame to move to the position where embroidery started from 1 to 10 times when the thread becomes cut or falls off from the frame.
Auto Return to the Embroidery Stop Position After Sudden Power Interruption In case of power outage, frame is automatically returned to the position where embroidery stopped. This function greatly reduces the risk of ruining embroidery from unexpected power outage.
Edit Function of the design Edit Function allows users to delete, modify, and/or insert stich data and function code such as jump, end, and trimming.
Individual Head Operation Individual Head Control allows users to control each head individually and leave other heads in their original location.
Auto Recognition of Other Company’s Design Code Design formats from other companies saved in USB memory are automatically recognized and can be applied towards embroidery.
Setting Speed and Current Speed are Displayed at RPM on the Screen Allows input/output, deletion of design using USB memory stick
Design Trace Facility with Laser This allows the customer to accurately trace the perimeter of the embroidery patten with a 5 mm margin, absolute margin or in a box shape.
Embroidery Frame Limits Each machine is equipped with embroidery hoop selection with frame perimeter limits to make the embroiders roll easier when combined with the hoop center feature.
Same Work Function With All dual function equipment the machine can be run as a normal multi-head from either side of operation.  This means that not only can you run more flexibly but also more efficiently.


  • Sequin/Zigzag Optional devices available SQ40i and ZD-10 devices
  • Veneer cutting tool built in (for easy badge cutting out)
  • Multi-language support Removable control box with convenient A/S service
